Q235 Material Transfer Carts Flatbed Heavy Duty Industrial Trailer For Workshop

Brand Name : BEFANBY

Model Number : KP/BWT

Certification : CE, SGS, ISO9001

Place of Origin : Henan, China

MOQ : 1 set/sets

Price : $1500-$2000/ Per Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 600 sets per year

Delivery Time : 15-20 working days for usual delivery

Packaging Details : The transfer trailer will be packed by the tarp, the parts will be packed y the high quality wooden case.

Warranty : 2 Year

Application : Material transfer, workshop ,production line

Capacity : 1-1500t for Industrial Trailer

Power supply : no powered/munual

Material : Q235

Operation type : winch, forklift, manual towing

Color : Yellow, Gray, Red or as your demands

Company Type : Manufacturer for material handling equipment since 2003

Contact Now

Flatbed Heavy Duty Industrial Trailer



1. Product Description



The heavy-duty industrial trailer is composed of a chassis, a lifting device, a hydraulic system, an electronic control system, a lifting traction device, a car body and a toolbox, etc. It has multiple functions such as lifting, towing, and lifting traction. Flatbed trailers, also known as flatbed trucks, full trailers, full trailers, flatbed trailers, etc., are important tools for modern logistics and transportation.
Features of heavy trailers
1. The double-spring buffer traction mechanism of the heavy-duty trailer has a buffer to avoid damage to the cargo when the vehicle starts or brakes suddenly.
2. The steering mechanism is Shanghai Gongji rotary assembly (excavator hook arm rotary assembly) and there is no need to worry about damage for ten years.
3. The traction cage can be adjusted and fixed up and down, and it only needs to be adjusted simply when traction heads or forklifts of different tonnages are towed.
4. Compared with the traditional hard connection (welding), the suspended frame reduces the long-term stress damage of the car body and has a long service life.
5. The wheel axle is automatically oscillating and adjustable, and the uneven ground ensures that the board surface is level and the tires are evenly stressed.
6. The front and rear wheel sets can be equipped with spring steel shock absorbers to reduce the damage to the goods caused by bumps.

Q235 Material Transfer Carts Flatbed Heavy Duty Industrial Trailer For WorkshopQ235 Material Transfer Carts Flatbed Heavy Duty Industrial Trailer For Workshop

​



2. Main of manual industrial cargo transport forklift towing trolley


A. The main parts of the forklift transfer trolley includes cart frame, towed hook, cast wheel, control box, etc.

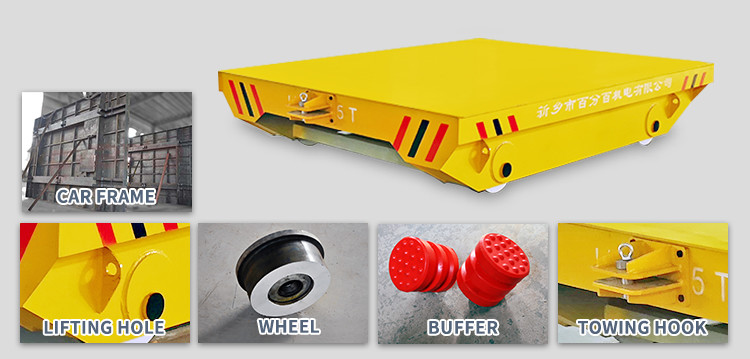

a. The Parts of the rail type towing trolley

Q235 Material Transfer Carts Flatbed Heavy Duty Industrial Trailer For Workshop

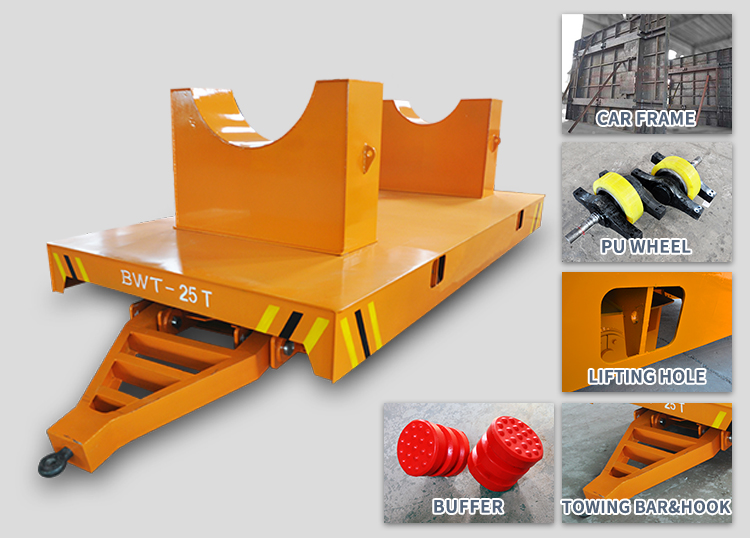

b. The Parts of the no rail type towing trolley



Q235 Material Transfer Carts Flatbed Heavy Duty Industrial Trailer For Workshop



3.The parameter of 1-500t customized industrial trolley

Model KP-2t KP-20t KP-50t KP-100t KP-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100





4. Company Introduce

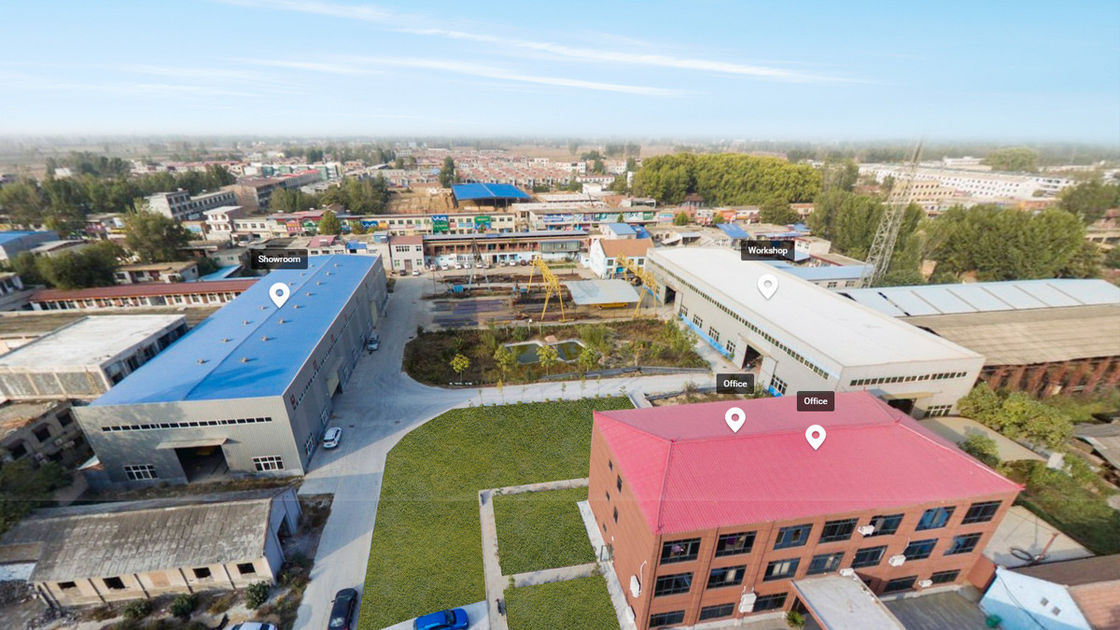

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 60 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

Q235 Material Transfer Carts Flatbed Heavy Duty Industrial Trailer For Workshop
Q235 Material Transfer Carts Flatbed Heavy Duty Industrial Trailer For Workshop

Q235 Material Transfer Carts Flatbed Heavy Duty Industrial Trailer For Workshop


5. Design Requirement Of Forklift Towing Trolley

The load capacity, table size, color of the roller bed trailers all can be customized.

1. The rated load capacity: BEFANBY will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trolley plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.



Q235 Material Transfer Carts Flatbed Heavy Duty Industrial Trailer For Workshop
